Egg Crate Grille

Egg Crate Grille
Model No. : AEG

Specification:
Extruded Aluminium Egg Crate Grille with 12.5 x 12.5 mm grid and 16mm flange as standard. Collar damper available as accessory for supply air.

  • Frame is constructed from high quality extruded aluminium profiles with the advantages of corrosion resistance and rigidity.
  • Aluminium egg crate core of 12.5 mm x 12.5 mm x 12.5 mm size is fixed rigidly to the frame.
  • Rigid construction provides noiseless performance.
  • Designed for return and exhaust applications for conditioned space.
  • More than 90% free area.

PRODUCT ORDER CHECKLIST

MODEL GRID SIZE FLANGE CEILING ACCESSORIES COLOUR
AEG 12.5×12.5mm 16mm Plain Tegular Collar Damper (D) Powder Coated
30mm  Mill Finish

*Required: Neck Size, Quantity and RAL Colour Code along with above specifications.

FIXING DETAILS

Option A: Screw on front side of flange

Option B: Concealed screw on inside surface of flange

Option C: Optional ‘C’ Clamp can be provided For concealed fixing.

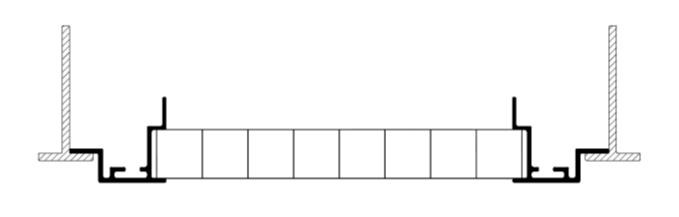

Option D: Placement of grille directly on the false ceiling frame.
