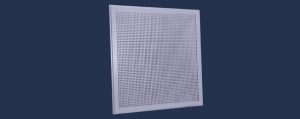

Perforated Diffusers

Model No. :  AEG

Specification:
Extruded Aluminium Perforated Diffuser with rigid extruded frame and 1.50 mm thick aluminium perforated sheet as standard.

DESCRIPTION

  • Frame is fabricated from high quality extruded aluminium profiles with the advantages of corrosion resistance and rigidity.
  • Perforated panel is rigidly fixed to the frame by rivets.
  • Perforated panel can be made from 1.5 to 2 mm thick aluminium sheets.
  • Perforation hole diameter 6 mm as standard.
  • Optional accessories:
    1. Opposed blade collar damper for supply air
    2. Plenum box either un-lined, internally insulated or externally insulated.

PRODUCT ORDER CHECKLIST

MODEL PERFORATION FLANGE CEILING ACCESSORIES COLOUR
AEG 6 mm (standard) 16mm Plain Collar Damper (D) Powder Coated
8 mm (optional) 30mm Tegular Plenum (P) Mill Finish

*Required: Neck Size, Quantity and RAL Colour Code along with above specifications.

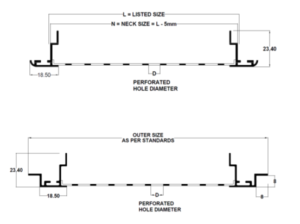

FIXING DETAILS

Option A: Screw on front side of flange

Option B: Concealed screw on inside surface of frame

Option C: Optional ‘C’ Clamp can be provided For concealed fixing.

Option D: Placement of grille directly on the false ceiling frame.
