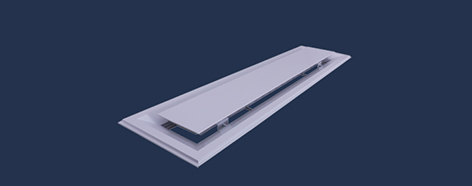

Rectangle Plaque Diffuser

Model No. : ACDRP

Specification:
Extruded aluminium rectangle ceiling diffuser with four way throw, and aluminium sheet plaque which is spring loaded and removable. Different construction available for flush type and tegular ceilings. Collar damper available as accessory for supply air.

DESCRIPTION

  • The frame and blades are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
  • Diffusers shall be plaque type manufactured by aluminium sheets, designed to deflect air equally in four directions.
  • Damper is fixed rigidly to the frame by aluminium
    rivets. Fixing by spring clips as option.
  • Opposed blade damper is lever operated from the face opening of the diffuser after removing the internal core.
  • Damper blades are separated from its frame by
    nylon gears and bushes bushes.
  • Diffusers are available in rectangular sizes as
    per clients choice, with standard increments.

PRODUCT ORDER CHECKLIST

MODEL OUTER SIZE NECK SIZE FRAME CEILING ACCESSORIES COLOUR
ACDRP 595×295 450×150 Extruded Plain / Tegular Collar Damper (D) Powder Coated, Anodised,
Plaque 1195×295 1050×150 Wood Finish
Mill Finish
Chrome Finish

*Required: Neck Size, Quantity and RAL Colour Code along with above specifications.

FIXING DETAILS

Option A: Screw on front side of flange

Option B: Concealed screw on inside surface of frame.

Option C: Placement of diffuser directly on the false ceiling frame.
